B/W Ultrasound

Location£ºHome > Products > B/W Ultrasound >

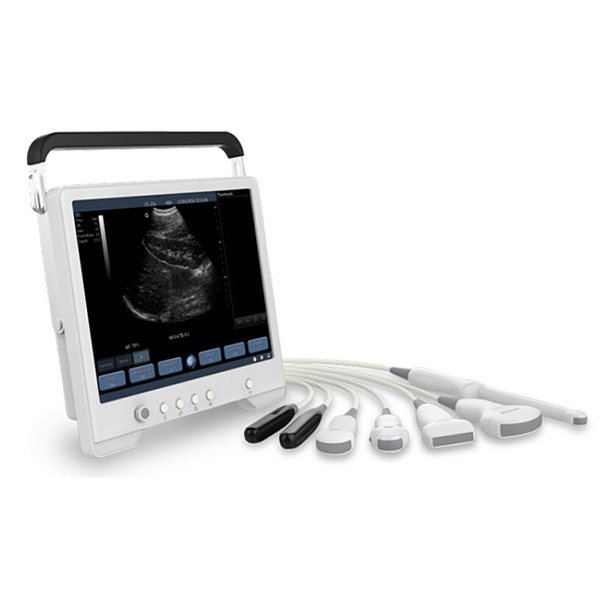

BW12

¡¡¡¡




Pre-processing :
·         Cloud processing technology
·         Fine blood flow imaging, high sensitive
·         Gain
·         8-segment TGC
·         Dynamic range
·         Persistence
·         M soften
·         Noise suppression

Post-processing:
·         Image enhancement
·         Gray-scale map
·         Pseudo color map
·         Interface to turn 180°
·         Left/right reverse
·         Up/down reverse
Application Package
Abdominal,Obstetrics,Gynecology, Cardiology, Neural and Small parts
Technical Specification
Modes:  B,M,2B,B/M,4B
Gray Level£º  256
Display: 15”LCD monitor
Touchscreen: Full Touchscreen
Transducer Frequency: 2-11Mhz
Digital Technology:  Wide-angle imaging
Panoramic focusing technology
Rolling M technology
Scanning Depth: 220mm
Probe ports: 3 active transducer connector ports
Peripheral ports: 2 USB ports, 1 networking port, 1power inlet,video
Power supply: 100-240V~ 50/60Hz <100VA
Measurement and Calculation
B mode:  Distance, angle, area, volume, trace length,distance ratio
M mode: Distance, time, slope, heart rate
Application package:  Abdomen, OB, Gynecology, Cardiac, Small parts
Function
Cine loop: 334 frames movie playback stored
Zoom: Pan zoom for the active imaging
Qopt: One-key optimize
THI: Tissue harmonic imaging
DICOM: Supported
Print: Report print for text&graph&image
